Candle Filter Cartridge and Filter Elements for Polymer

Candle Filter Elements are groups of metal pleated filter elements fixed with candle holders to work as an candle-like filtration unit. Porous metal filters for high-temperature, high pressure polymer processing applications. Designed to remove the impurities ( such as titanium dioxide, gels and other solid residues ) of the polymer melt in chemical fiber, textile and plastics industries. Suitable for monomer, pre-polymer or polymer filter systems.These filter elements are typically tubular and made of stainless steel mesh or stainless steel sintered mesh with a cap on the bottom and a threaded connector on the top (or vice versa) that connects to the core end. The outer surface of some tubes is made of perforated metal sheet, expanded metal, sintered metal or porous ceramic to support the filter media.

    Contact us
    product details

    Description

    The melt filter element is installed in the extrusion line, where the polymer melt is forced through the filter to remove impurities. The candle filter element is placed inside the filter housing (housing). It is a compact device that can typically hold 1-20 candles, depending on the size of the filter. The filter element is arranged vertically in the pressure vessel to filter liquids with low solid content. The candle filter allows high productivity, easy bottom sediment discharge.
    The main filter layer of Pleated Filter mainly uses two materials：stainless steel wire mesh and stainless steel Sintered fiber . Stainless steel wire mesh is woven from stainless steel wire. Its pleated filter has the characteristics of smooth pores, easy cleaning, high temperature resistance, corrosion resistance, no wire mesh falling off, and long filtration cycle. Stainless steel sintered fiber is a porous deep filter material made of stainless steel fibers sintered at high temperature. Its pleated filter has the characteristics of high porosity, good air permeability, strong dirt holding capacity, and strong regeneration ability.

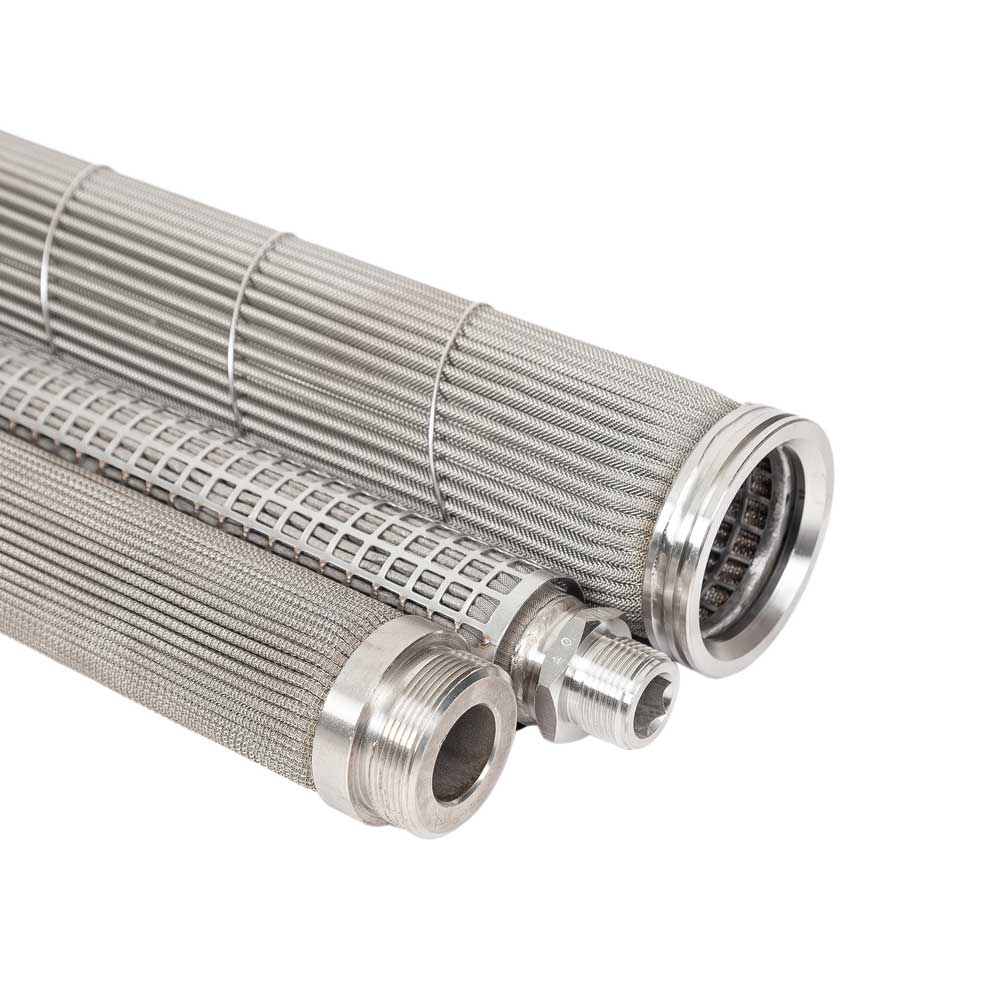

    • mesh-filter

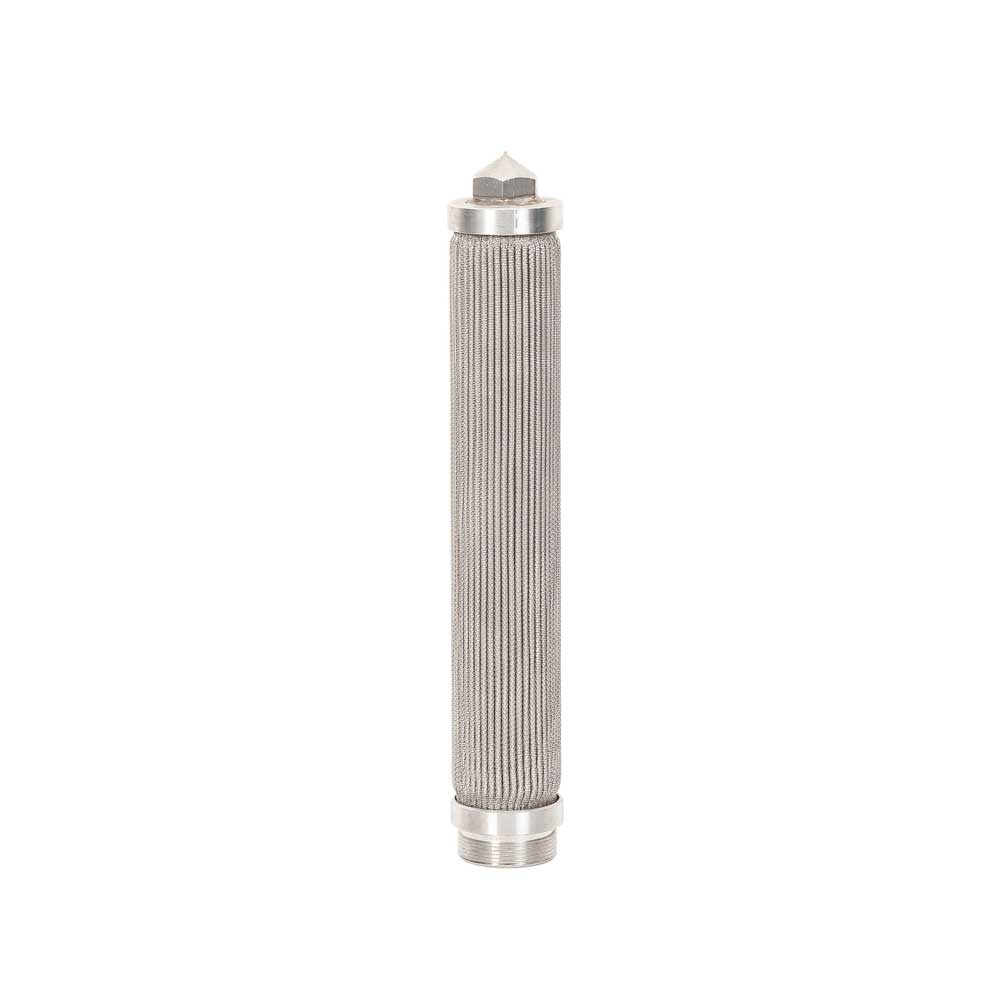

    • Candle-Filter-Cartridge-and-Filter-Elements-for-Polymer1
    • candle-filter

    Candle filter elements and filter media

    Filter Raw Material SUS304/316L
    Filter Media Metal sintering mesh stainless steel wire mesh
    Filtration Rating 1-200 Micro
    Filter Length 16-60 inch (406.4-1524mm)
    Working Temp. ≤350℃
    Allowed Pressure difference 10 bar/14psi
    Connector Type 222/226/215/M36/M28/M24/M22/M20
    Note: We can provide high quality polymer pleated candle filters to meet your specific requirements of polymer melt filtration applications.

    SUS  Screen Mesh Polymer Filter Element for Chemical Fiber Industry

    Stainless Wire Mesh for Polymer Filter Element

    Mesh/Inch

    Wire Diameter

    Aperture

    Open Area

    Weight(LB) /100 Square Foot

    Inch

    MM

    Inch

    MM

    1x1

    0.08

    2.03

    0.92

    23.37

    84.6

    41.1

    2X2

    0.063

    1.6

    0.437

    11.1

    76.4

    51.2

    3X3

    0.054

    1.37

    0.279

    7.09

    70.1

    56.7

    4X4

    0.063

    1.6

    0.187

    4.75

    56

    104.8

    4X4

    0.047

    1.19

    0.203

    5.16

    65.9

    57.6

    5X5

    0.041

    1.04

    0.159

    4.04

    63.2

    54.9

    6X6

    0.035

    0.89

    0.132

    3.35

    62.7

    48.1

    8X8

    0.028

    0.71

    0.097

    2.46

    60.2

    41.1

    10X10

    0.025

    0.64

    0.075

    1.91

    56.3

    41.2

    10X10

    0.02

    0.51

    0.08

    2.03

    64

    26.1

    12X12

    0.023

    0.584

    0.06

    1.52

    51.8

    42.2

    12X12

    0.02

    0.508

    0.063

    1.6

    57.2

    31.6

    14X14

    0.023

    0.584

    0.048

    1.22

    45.2

    49.8

    14X14

    0.02

    0.508

    0.051

    1.3

    51

    37.2

    16X16

    0.018

    0.457

    0.0445

    1.13

    50.7

    34.5

    18X18

    0.017

    0.432

    0.0386

    0.98

    48.3

    34.8

    20X20

    0.02

    0.508

    0.03

    0.76

    36

    55.2

    20X20

    0.016

    0.406

    0.034

    0.86

    46.2

    34.4

    24X24

    0.014

    0.356

    0.0277

    0.7

    44.2

    31.8

    30X30

    0.013

    0.33

    0.0203

    0.52

    37.1

    34.8

    30X30

    0.012

    0.305

    0.0213

    0.54

    40.8

    29.4

    30X30

    0.009

    0.229

    0.0243

    0.62

    53.1

    16.1

    35X35

    0.011

    0.279

    0.0176

    0.45

    37.9

    29

    40X40

    0.01

    0.254

    0.015

    0.38

    36

    27.6

    50X50

    0.009

    0.229

    0.011

    0.28

    30.3

    28.4

    50X50

    0.008

    0.203

    0.012

    0.31

    36

    22.1

    60X60

    0.0075

    0.191

    0.0092

    0.23

    30.5

    23.7

    60X60

    0.007

    0.178

    0.0097

    0.25

    33.9

    20.4

    70X70

    0.0065

    0.165

    0.0078

    0.2

    29.8

    20.8

    80X80

    0.0065

    0.165

    0.006

    0.15

    23

    23.2

    80X80

    0.0055

    0.14

    0.007

    0.18

    31.4

    16.9

    90X90

    0.005

    0.127

    0.0061

    0.16

    30.1

    15.8

    100X100

    0.0045

    0.114

    0.0055

    0.14

    30.3

    14.2

    100X100

    0.004

    0.102

    0.006

    0.15

    36

    11

    100X100

    0.0035

    0.089

    0.0065

    0.17

    42.3

    8.3

    110X110

    0.004

    0.1016

    0.0051

    0.1295

    30.7

    12.4

    120X120

    0.0037

    0.094

    0.0064

    0.1168

    30.7

    11.6

    150X150

    0.0026

    0.066

    0.0041

    0.1041

    37.4

    7.1

    160X160

    0.0025

    0.0635

    0.0038

    0.0965

    36.4

    5.94

    180X180

    0.0023

    0.0584

    0.0033

    0.0838

    34.7

    6.7

    200X200

    0.0021

    0.0533

    0.0029

    0.0737

    33.6

    6.2

    250X250

    0.0016

    0.0406

    0.0024

    0.061

    36

    4.4

    270X270

    0.0016

    0.0406

    0.0021

    0.0533

    32.2

    4.7

    300X300

    0.0051

    0.0381

    0.0018

    0.0457

    29.7

    3.04

    325X325

    0.0014

    0.0356

    0.0017

    0.0432

    30

    4.4

    400X400

    0.001

    0.0254

    0.0015

    0.37

    36

    3.3

    500X500

    0.001

    0.0254

    0.001

    0.0254

    25

    3.8

    635X635

    0.0008

    0.0203

    0.0008

    0.0203

    25

    2.63

    Application Areas

    1. Petrochemical: Refining, chemical production and separation and recovery of intermediate products.
    2. Metallurgy: used for filtration of hydraulic systems of rolling mills and continuous casting machines.
    3. Textile: Purification and uniform filtration of polyester melt during the drawing process.
    4. Electronics and pharmaceuticals: pre-treatment and filtration of reverse osmosis water and deionized water, pre-treatment and filtration of cleaning fluid and glucose.
    5. Thermal power and nuclear power: purification of lubrication systems, speed control systems, bypass control systems of gas turbines and boilers, purification of water supply pumps, fans and dust removal systems.

    Quality Control

    1. Every polymer filter element is tested by bubble-point and air flow method before shipment to ensure product integrity and performance. Test certificate is offered with each lot of shipment.
    2. All polymer melt filter elements are laser marked for identification and easy tracing at bottom of end fittings. According to this, we can provide reliable after sales service.
    3. Candle elements are made from 304L or 316L stainless steel filter media. Ideal for repeated cleaning and long term uses. Suitable for high temperatures uses and highly corrosive applications.
