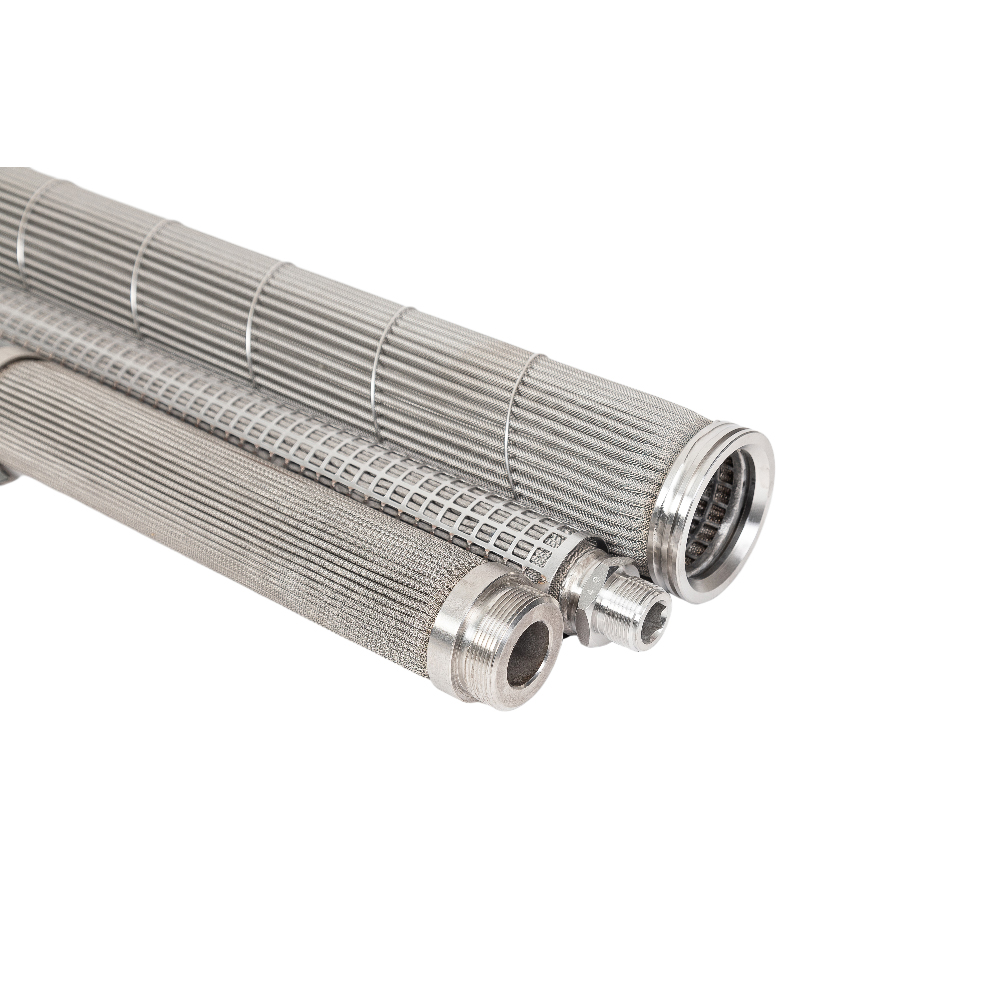

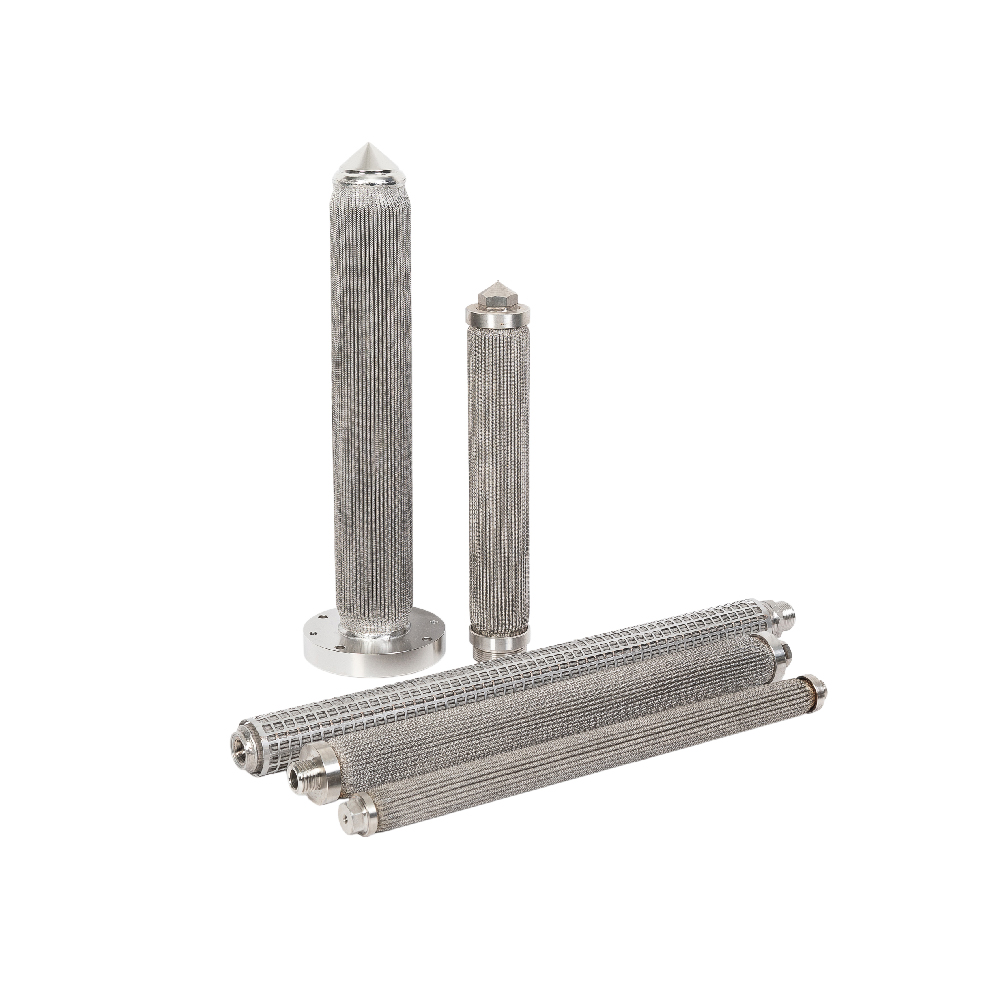

Customized Polymer Pleated Candle Filter Cartridge
Description
Main features
Specification
| Filter Raw Material | SUS304/316L |
| Filter Media | Metal sintering mesh stainless steel wire mesh |
| Filtration Rating | 1-200 Micro |
| Filter Length | 16-60 inch (406.4-1524mm) |
| Working Temp. | ≤350℃ |
| Allowed Pressure difference | 10 bar/14psi |
| Connector Type | 222/226/215/M36/M28/M24/M22/M20 |
|
DIAMETER MM |
LENGTH MM |
SUITABLE FOR FILTRATION MACHINE |
|
Φ35 |
425MM |
PF2T-0.5B/PF2T-1.05B/PF2T-1.95B/PF2T-2.34B |
|
Φ35 |
485MM |
PF2T-1.26B/PF2T-2.34B/PF2T-2.7B/PF2T-3.5B |
|
Φ35 |
525MM |
PF2T-4.0B |
|
Φ35 |
575MM |
PF2T-4.5B/PF2T-5.5B |
|
Φ50 |
500MM |
PF2T-4.5B/PF2T-5.5B |
CPF SPECIAL TWILLED WEAVE WIRE MESH(DUTCH WEAVE)
|
MODEL |
NETTING INDEX |
WIRE DIAMETER |
FILTRATION um |
|
80 II |
20*250 |
0.28*0.2 |
38 |
|
120 II |
30*300 |
0.25*0.18 |
36 |
|
200 II |
50*500 |
0.14*0.11 |
34 |
|
320 I |
80*700 |
0.11*0.08 |
32 |
|
320 II |
80*780 |
0.10*0.07 |
30 |
|
350 |
90*780 |
0.10*0.07 |
25 |
|
400 I |
100*780 |
0.10*0.07 |
22 |
|
400 II |
100*900 |
0.10*0.063 |
20 |
|
500 |
120*1100 |
0.07*0.05 |
17 |
|
630 |
150*1400 |
0.063*0.04 |
16 |
|
650 |
165*1400 |
0.07*0.04 |
14 |
|
685 |
180*1800 |
0.063*0.032 |
13 |
|
795 I |
200*1400 |
0.07*0.04 |
12 |
|
795 II |
200*1800 |
0.05*0.032 |
10 |
|
850 |
210*1900 |
0.045*0.03 |
10 |
CPF SPECIAL STAINLESS STEEL WIRE MESH
|
NETTING INDEX |
SNG |
APERTURE mm |
|
40 |
36 |
0.44 |
|
50 |
38 |
0.36 |
|
60 |
40 |
0.30 |
|
80 |
42 |
0.21 |
|
100 |
44 |
0.17 |
|
120 |
44 |
0.23 |
|
150 |
46 |
0.108 |
|
162 |
46 |
0.097 |
|
180 |
47 |
0.08 |
|
200 |
47 |
0.077 |
|
250 |
48 |
0.061 |
|
270 |
48 |
0.056 |
|
300 |
49 |
0.054 |
|
325 |
49 |
0.053 |
|
350 |
49 |
0.042 |
|
400 |
50 |
0.0385 |
CPF SPECIAL PLAIN WEAVE WIRE MESH (DUTCH WEAVE)
|
MODEL |
NETTING INDEX |
WIRE DIAMETER |
FILTRATION um |
|
40 |
10*64 |
0.55*0.42 |
260 |
|
50 |
12*75 |
0.45*0.35 |
220 |
|
80 |
24*110 |
0.35*0.25 |
160 |
|
100 |
25*140 |
0.28*0.20 |
100 |
|
120 |
30*150 |
0.25*0.18 |
80 |
|
140 |
35*180 |
0.20*0.16 |
70 |
|
160 |
40*200 |
0.18*0.13 |
60 |
|
180 |
45*220 |
0.16*0.12 |
56 |
|
200 |
50*250 |
0.15*0.11 |
50 |
|
240 |
60*300 |
0.14*0.09 |
45 |
|
260 |
65*320 |
0.13*0.08 |
36 |
|
280 |
70*400 |
0.125*0.07 |
34 |
|
300 |
80*700 |
0.11*0.039 |
32 |
