Enhancing Water Filtration: Disc Filters in Pretreatment Solutions
2026-06-30
In polymer melt filtration production lines across the plastics extrusion, film, chemical fiber, and petrochemical industries, a graded filtration structure is widely adopted for melt purification. The complete system consists of three stages: front-end pretreatment filtration, medium-stage rough-to-fine transition filtration, and final high-precision precision filtration.
The mainstream precision filtration elements at the rear end mainly include candle filters, Pleated Filter cartridges, and sintered precision screens. Made from multi-layer gradient sintered metal fibers and fine stainless steel woven mesh, these components achieve filtration precision as low as1–5 μm, capturing micro gels and ultra-fine carbonized particles that directly determine the appearance and mechanical properties of finished films and fibers.
However, precision Filtration Elements have notable limitations: Their fine pore structure results in limited dirt-holding capacity. Without a front-end pretreatment unit, large 焦料，unmelted resin clusters, hard metal impurities, and large plastic debris in the melt will directly impact precision cartridges. Hard particles easily scratch sintered fiber layers, while large contaminants rapidly clog surface pores, causing a sharp rise in system differential pressure. This forces frequent production shutdowns for cartridge replacement, significantly increasing overall production costs including consumable procurement, manual cleaning, and startup waste loss. Frequent starts and stops also trigger melt thermal degradation, continuously lowering product yield.
Against this industry background, the disc filter (vane-disc melt filter) has become a standardized pretreatment unit widely installed upstream of precision filters. With advantages of large filtration area, high dirt-holding capacity, and high pressure & temperature resistance, it intercepts large-sized impurities in the melt, distributes filtration load, and reduces contamination loss of downstream precision filters at the source — making it a key component for stable, long-term operation of the entire melt filtration system.
Structure & Filtration Principles of Disc Filters for Pretreatment

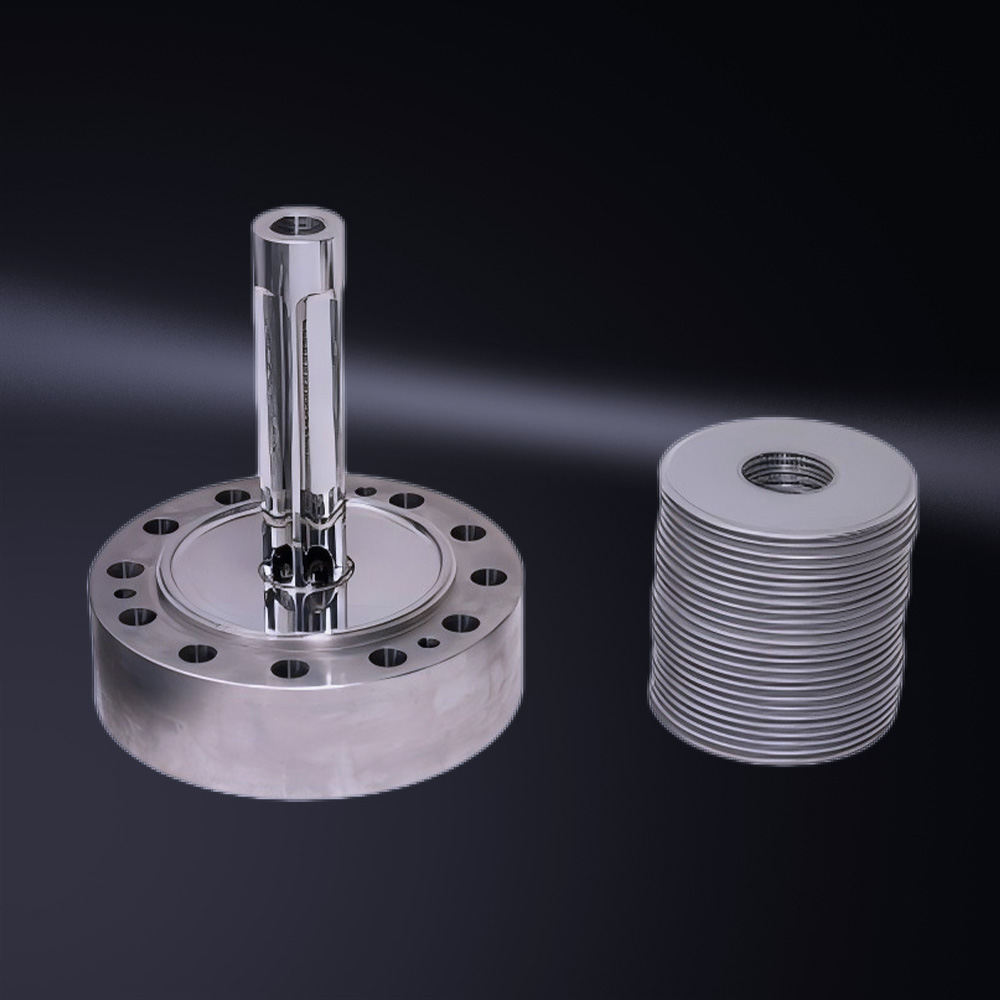

Disc filters used for polymer melt pretreatment adopt a laminated structure of multi-layer sintered stainless steel mesh and sintered metal fiber felt. Multiple filter discs are coaxially stacked inside the filter housing, creating an ultra-large effective filtration area within limited space to suit continuous conveying of high-viscosity melt.
Graded Interception Filtration Mechanism
Filter discs are designed with gradient-aperture composite filter media:
- The outer coarse layer preferentially intercepts hard particles, large 焦料，and unmelted clusters in the 50–200 μm range.
- The middle layer captures medium-sized gel impurities.
After staged rough filtration by the disc filter, only trace fine soft gels and ultra-fine powder remain in the melt, which then enters downstream candle or pleated precision filters for deep polishing. This realizes layered impurity interception and load sharing.
Low Flow Resistance for Stable Operation
The stacked disc structure features smooth fluid channels and low overall pressure drop, without restricting melt flow rate. It supports stable 24-hour continuous operation of extruders, film lines, and fiber spinning equipment. Compared with direct filtration by a single precision filter, system differential pressure rise can be reduced by more than 60% with front-end disc pretreatment, greatly extending the online service life of the entire filtration unit.
High Temperature & Corrosion Resistance
All filter discs are sintered from 304, 316L, or 316L stainless steel, withstanding melt temperatures above 300°C and high-pressure conditions. They resist chemical corrosion from polymer melts and material erosion. Fully welded for high mechanical strength, discs resist deformation and damage, are reusable after cleaning, and deliver lower long-term operating costs.
Core Roles of Disc Filters in Protecting Downstream Precision Filters
1. Block Large Hard Particles to Prevent Physical Damage to Precision Filter Media
Precision candle cartridges and pleated elements have fragile fine sintered fiber layers with poor impact and scratch resistance. Metal chips, hardened carbon deposits, and abrasive particles flowing at high speed easily scratch or pierce precision media, causing permanent cartridge failure, melt leakage, and impurity breakthrough that contaminates finished products.
The disc filter acts as the first physical barrier, completely intercepting all large solid hard contaminants and preventing them from entering the downstream precision chamber. This drastically reduces cartridge damage and scrap rates, lowering consumable expenses from frequent replacements.
2. Share Dirt-Holding Load & Extend Precision Filter Replacement Cycles
The fine pores of precision cartridges impose a strict limit on dirt-holding capacity. Direct exposure to full impurity loads leads to rapid pore blockage by gels and particles, forcing unscheduled shutdowns. The stacked disc structure provides exceptional dirt-holding volume, absorbing more than 70% of total filtration load.
Field data from film and fiber lines shows that with disc pretreatment, the replacement cycle of downstream candle filters is extended 2–3 times, reducing downtime, material waste, and production losses while improving overall line utilization.
3. Stabilize Melt Flow & Reduce Precision Process Fluctuations
Untreated melt contains unevenly distributed impurities. Local accumulation causes partial clogging, unbalanced flow distribution, and consistent defects such as uneven thickness, filament breakage, fish eyes, and crystal spots.
Disc filters homogenize the melt in advance by removing large agglomerated impurities. The melt entering precision filters maintains uniform cleanliness, balanced cartridge stress, and stable, controllable differential pressure curves. This ensures consistent quality of downstream film and fiber products and reduces rejects.
4. Reduce Precision Cartridge Cleaning Frequency & Lower Labor Costs
Cleaning precision sintered cartridges involves complex processes: high-temperature calcination, ultrasonic cleaning, and pressure purging — each cycle is time-consuming and labor-intensive.
Front-end disc filters capture most contaminants, leaving only trace fine impurities on precision cartridges. Their cleaning cycles are greatly extended, and per-cycle workload reduced, cutting labor and energy costs. Discs are also easy to disassemble and clean, enabling fast maintenance with minimal production downtime.
Industry Applications of Disc Filter Pretreatment
1. Plastics Extrusion & Recycling Pelletizing
Recycling lines generate large amounts of carbonized ，plastic fragments, and metal impurities that quickly clog candle filters. Installing a disc filter downstream of the main extruder intercepts large particles from recycled feed before deep filtration by downstream precision screens. This stabilizes pellet appearance and protects precision media, supporting full-process filtration for PP, PE, and other waste plastic regeneration.
2. Polymer Film Production
OPP, CPP, BOPET, and BOPA film lines demand extremely high melt cleanliness; even micro-impurities cause breaks and surface defects. The industry standard configuration is disc filter pretreatment + candle precision filter deep filtration. Discs remove large gels and carbonized materials, while precision cartridges capture micron-level fines — balancing continuous production, film quality, and reduced precision filter consumption.
3. Chemical Fiber Spinning
PET and PA spinning melts contain unmelted chip particles and gel clusters that easily clog spinneret micro-holes, leading to broken filaments and uneven diameter. As a front-end pretreatment unit, disc filters remove large impurities, protect downstream candle cartridges and spinning components, stabilize spinning conditions, improve fiber uniformity, and reduce equipment maintenance frequency.
4. Petrochemical Industry
Petrochemical fluids and resin melts often carry pipe rust, catalyst particles, and polymer byproduct solids. Front-end disc filters perform rough pretreatment to intercept large solid contaminants, preventing clogging and wear of downstream precision elements, pipelines, and valves, ensuring long-term stable operation of the entire fluid filtration system.
Selection & Matching Guidelines for Disc Filters & Precision Filters
Precision Gradient Matching
- Disc pretreatment filters: 20–150 μm
- Downstream candle/pleated filters: 1–10 μm
This creates a rough-to-fine gradient to avoid efficiency losses from overlapping ranges while maximizing impurity load sharing.
Filtration Area vs. Production Capacity
Calculate total disc filtration area based on melt flow rate and impurity content. High-contamination environments require multi-disc, large-format filters to ensure sufficient dirt-holding capacity and avoid pretreatment clogging disrupting the whole line.
Material Compatibility
- Acidic / corrosive melts: 316L / 316L stainless steel discs
- General polyolefin melts: 304 stainless steel
- High-temperature / high-pressure: reinforced multi-layer sintered composite discs
Materials must match the tolerance standards of downstream precision components.
Housing Flow & Pressure Compatibility
Inlet/outlet flow and pressure ratings of disc filter housings should match downstream precision housings to minimize turbulence from diameter changes, avoid secondary impurity agglomeration, and ensure smooth graded filtration flow.
Long-Term Economic Benefits of Graded Filtration Systems
The graded structure combining disc filter pretreatment + downstream precision filtration is recognized globally as a low-cost, high-efficiency solution for polymer processing.
Long-term operational benefits include:
- Sharply reduced procurement, cleaning, and replacement costs for candle and pleated cartridges
- Less downtime and production capacity loss
- Stable melt filtration and fewer impurity-related defects, improving product yield and competitiveness
- Reduced abrasion to precision components and downstream molding equipment, extending service life of core line assets
During melt filtration system planning, properly deploying disc pretreatment filters represents the optimal engineering choice that balances production stability, product quality, and operational cost.
