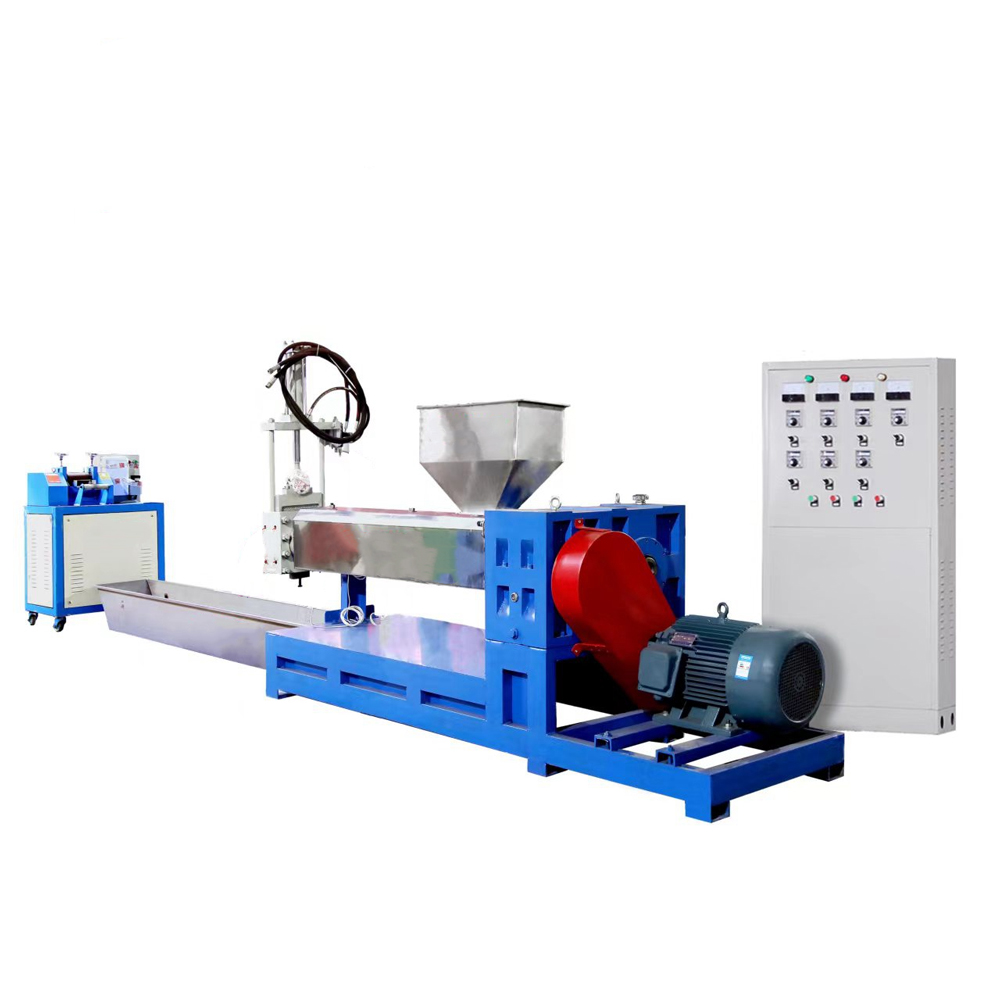

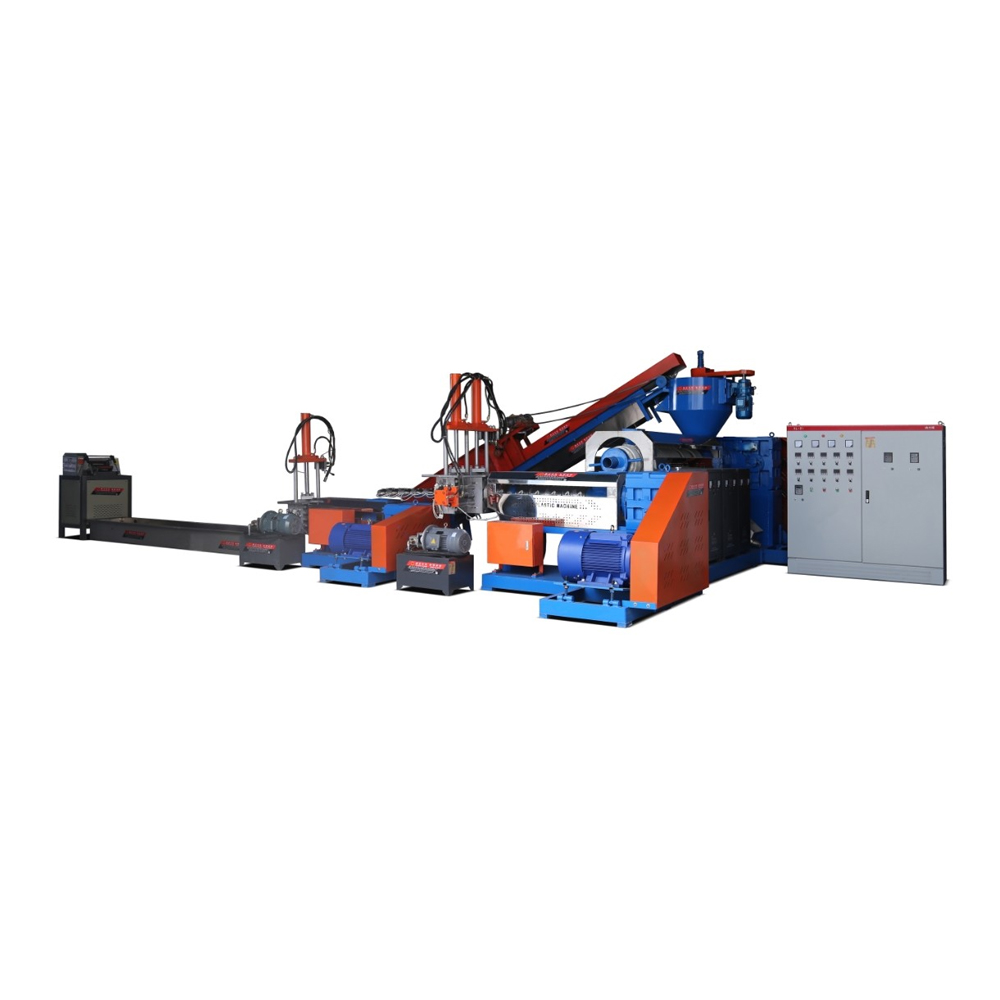

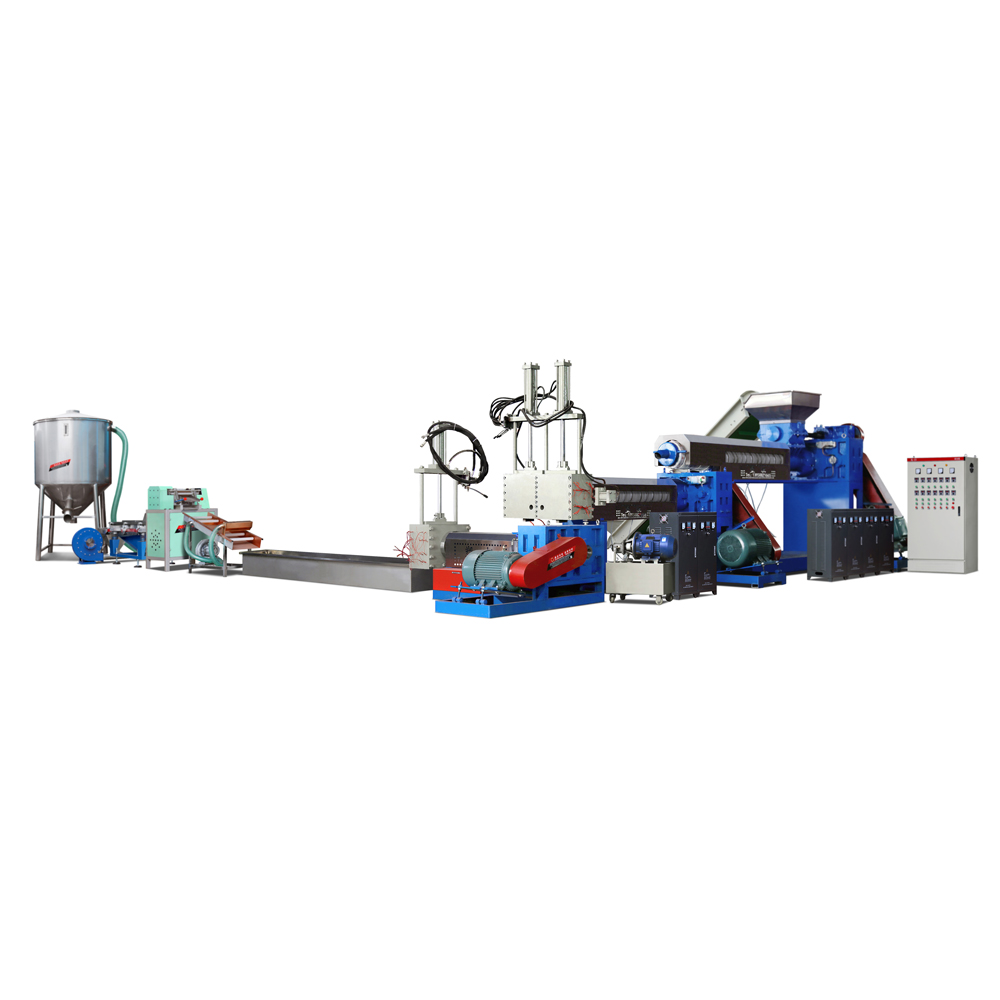

Plastic Pelletizing Machine Recycling Machine
At HG Machinery, we provide you one whole recycling machine solution according your specific need.
How a Plastic Pelletizing Machine works
Extrusion: The plastic waste is fed into an extruder, where it is melted and formed into a continuous strand.
Cooling: The melted PP is cooled, often using cold water or air cooling systems to solidify the strands.
Pelletizing: The cooled strands are chopped into small pellets using a pelletizing die or cutter.
Drying: Any excess moisture is removed from the pellets to prepare them for further use or sale.
Key Features and Technology
1:Screws are carefully designed and developed by engineers. The entire machine and every component are fully equipped. The heating circuit use three fire line and one zero line.
2:The screw is designed for the material characteristics,the output is high, the material has good gloss and the particles are full,the whole machine configuration is increased, the service life of the equipment id increased, and the appearance is rationalized.
3:The reasonable design of the equipment increases production, reduces maintenance time and reduces maintenance costs.
4:The granulator has the characteristics of high output and low energy consumption. It is equipped with a large torque gearbox and electric motor.It has no dead angle and no iron effect, effectively improves the production capacity and improves the plasticizing effect of plastic.It has single exhaust and double exhaust structure. The dry material, the tide material and the water washing material can fully drain the exhaust gas,so that the particles are strong and full of gloss.
5:The High-quality electrical and drive equipment makes the equipment safer and more reliable in use.
Main technical Specification
| Model | Diameter（mm） | Length（mm） | Power（kw） | Temp control | Output(T/24H) |
| 100 | 100 | 2800 | 30 | 6 | 4ton |
| 110 | 110 | 3200 | 37 | 6 | 5ton |
| 120 | 120 | 3200 | 45 | 6 | 6ton |
| 130 | 130 | 3200 | 55 | 7 | 7-8ton |
| 140 | 140 | 3800 | 75 | 7 | 8-9ton |
| 150 | 150 | 4200 | 90 | 7 | 10-11ton |
Detailed Picture of Pelletizing Machine Line

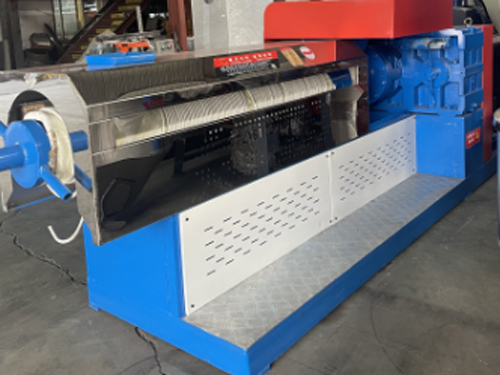

1. Main machine of extrusion part
PP waste will be fed into hopper and through the main extrusion machine into a continuous strand to the next part.
Screw diameter: 100/110/120/130/140/150/160mm
Screw length: 2400mm
Screw material: 38CrMoAl alloy steel

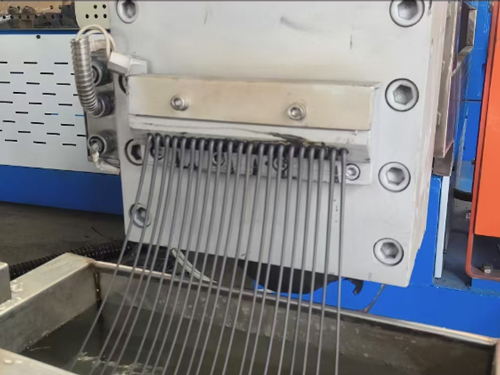

2. Second machine of extrusion part
The continuous strand from the main machine will be transform into second machine channel to collect and then squeeze out several thin strips into water tank to cool down into a plastic strips.

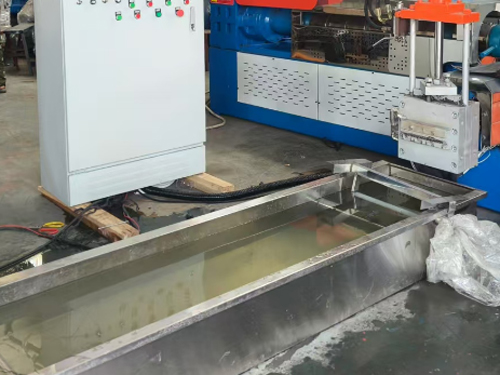

3. Water tank
Water tank will cool down the several thin strips from second machine of extrusion into plastic strips.
Length: 3000mm Width: 400mm

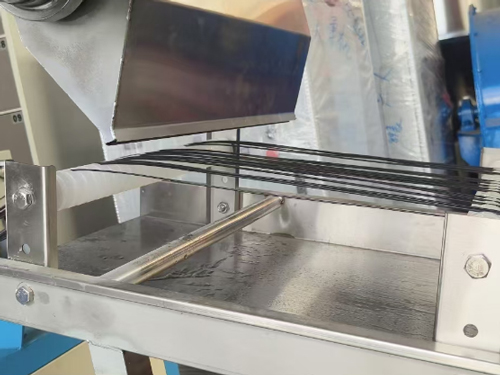

4. Blower
This equipment will dry the plastic strips and then to better cut to store.

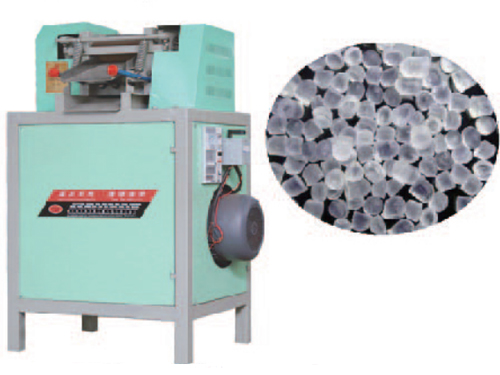

5. Cutter
The long strips will be cut into small plastic with low noise and high speed.
