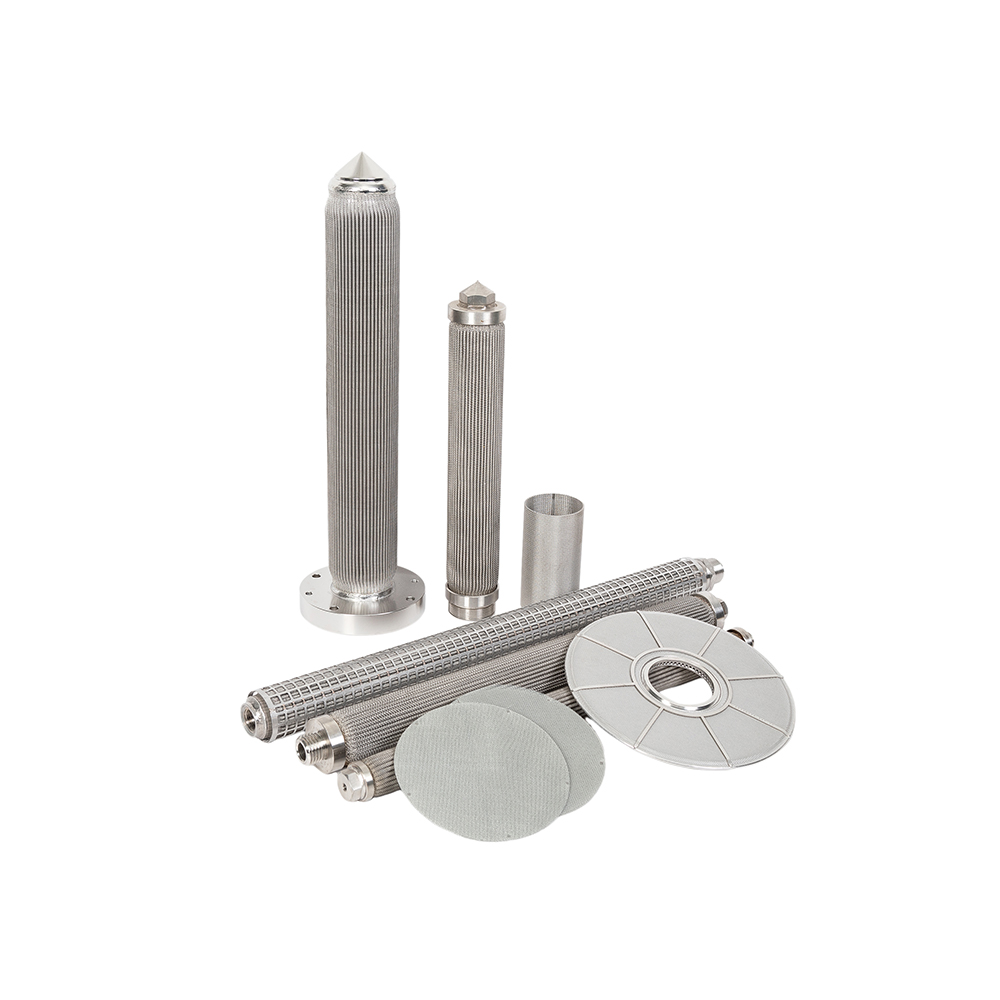

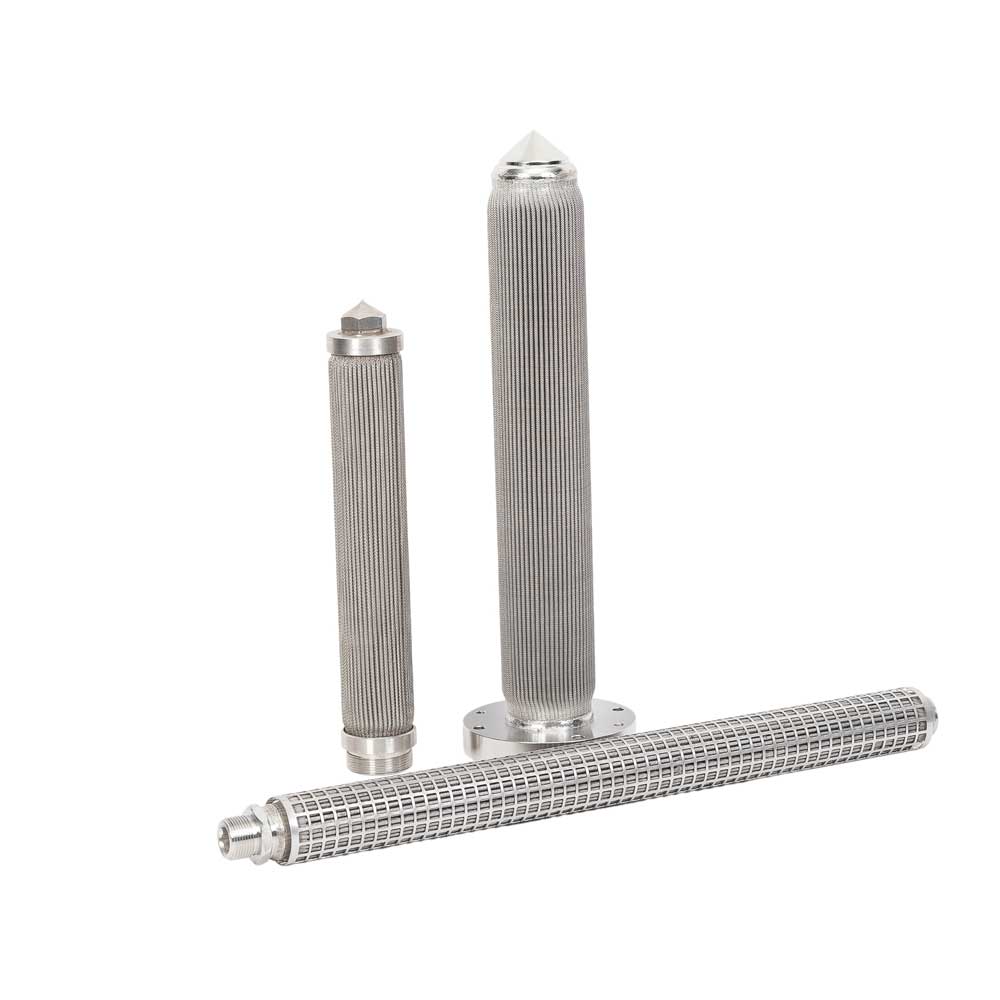

Polymer Candle Filter for High Viscosity Substances Filtration
Description
The melt filter element is installed in the extrusion line, where the polymer melt is forced through the filter to remove impurities. The filtered polymer melt then proceeds to the spinning process, where it is solidified into continuous filaments or staple fibers.
Regular maintenance and replacement of the melt filter element are important to ensure the continuous and efficient operation of the chemical fiber production process. This helps to avoid production downtime, improve product quality, and ensure the longevity of the filtering equipment.
Main features
1. Resistant to high temperature, high pressure and chemical corrosion.
2. Excellent breathability, large dirt holding capacity, high strength, good sealing, long life, and can be cleaned and reused for repeated use.
3. The folded filter area is 3-5 times that of the cylindrical type.
4. Working temperature: -60-500℃.
5. The maximum pressure difference the filter element can withstand: 10MPa.
Specification
The melt filter element is installed in the extrusion line, where the polymer melt is forced through the filter to remove impurities. The filtered polymer melt then proceeds to the spinning process, where it is solidified into continuous filaments or staple fibers.
Regular maintenance and replacement of the melt filter element are important to ensure the continuous and efficient operation of the chemical fiber production process. This helps to avoid production downtime, improve product quality, and ensure the longevity of the filtering equipment.
| Filter Raw Material | SUS304/316L |
| Filter Media | Metal sintering mesh stainless steel wire mesh |
| Filtration Rating | 1-200 Micro |
| Filter Length | 16-60 inch (406.4-1524mm) |
| Working Temp. | ≤350℃ |
| Allowed Pressure difference | 10 bar/14psi |
| Connector Type | 222/226/215/M36/M28/M24/M22/M20 |
Note: We can provide high quality polymer pleated candle filters to meet your specific requirements of polymer melt filtration applications.
We list regular candle filter size as below,it is popular size in melt filtration machines,just for reference only.
|
DIAMETER MM |
LENGTH MM |
SUITABLE FOR FILTRATION MACHINE |
|
Φ35 |
425MM |
PF2T-0.5B/PF2T-1.05B/PF2T-1.95B/PF2T-2.34B |
|
Φ35 |
485MM |
PF2T-1.26B/PF2T-2.34B/PF2T-2.7B/PF2T-3.5B |
|
Φ35 |
525MM |
PF2T-4.0B |
|
Φ35 |
575MM |
PF2T-4.5B/PF2T-5.5B |
|
Φ50 |
500MM |
PF2T-4.5B/PF2T-5.5B |
